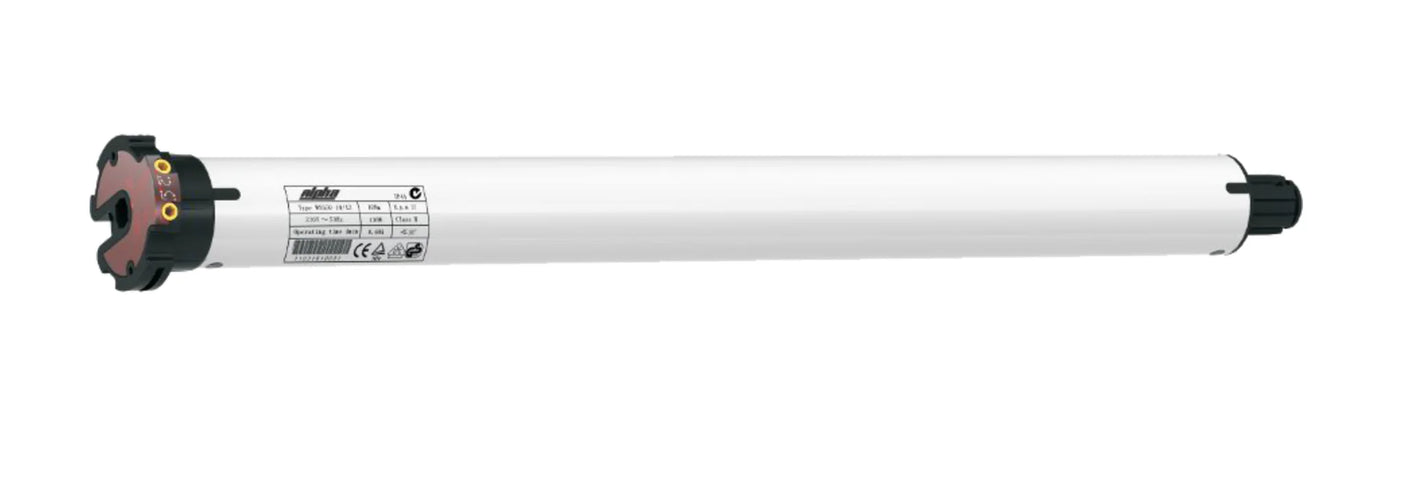

Alpha WSS50 50/16 Universal Tubular Motor

WSS50 50/16 Universal Tubular Motor – Extra-Heavy-Duty Mechanical Limit Motor

Designed for the most demanding applications, the WSS50 50/16 is Alpha’s highest torque mechanical-limit tubular motor, delivering a powerful 50 N·m output and a steady 16 rpm speed. Built to control oversized roller shutters, awnings, projection screens, and large-scale blinds, this motor provides unmatched strength and reliability in a streamlined, no-programming-required solution.

• 50 N·m of torque for ultra-heavy-duty lifting
• Manual mechanical limits – simple and consistent
• IP44 protection for indoor and light exterior environments
• Engineered for commercial-grade applications
• Ideal for large-scale roller blinds, shutters, and AV screens
• 4-minute duty cycle with high-efficiency performance

Specifications:

• Torque: 50 N·m
• Speed: 16 rpm
• Voltage: 120V AC
• Current Draw: 2.1 A
• Power Consumption: 245 W
• Length: ~600 mm
• IP Rating: IP44
• Max Turns: 27

Note: This motor must be wired individually and is not suitable for parallel wiring. For remote programming or smart control integration, see the WSER50 50/16 electronic series.

• Warranty: 7‑year replacement
• Mechanical limit setting – click here
• ALPHA Motor Video Library - click here

• Motor Lifting Capacity Chart - click here


• WSS/WSM Series Motor Guide - click here
