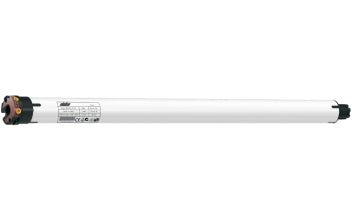

Alpha WSS40 6/34 Universal – Mechanical-Limit AC Motor

If you're installing a single blind and don’t need remote control or electronic limits, the WSS40 is a reliable, budget-friendly option.

But if you're planning on automation, want wireless control, electronic limit setting, or to wire multiple motors, the WSER40Q is the superior, more convenient choice.

• Alpha Tubular Motors USA (120 V, 60 Hz)
• Torque: 6 N·m
• Speed: 34 rpm
• Power draw: 103 W
• Current: 0.88 A
• Run time: 4 minutes
• Protection: IP 44
• Dimensions: 20.08″ length; max 27 turns
• Weight: ~2.86 lb
• Warranty: 7‑year replacement
• Limit type: mechanical (requires manual stop points)
• Notes: Does not support parallel wiring—each motor must be powered individually
